Plain-English Lead

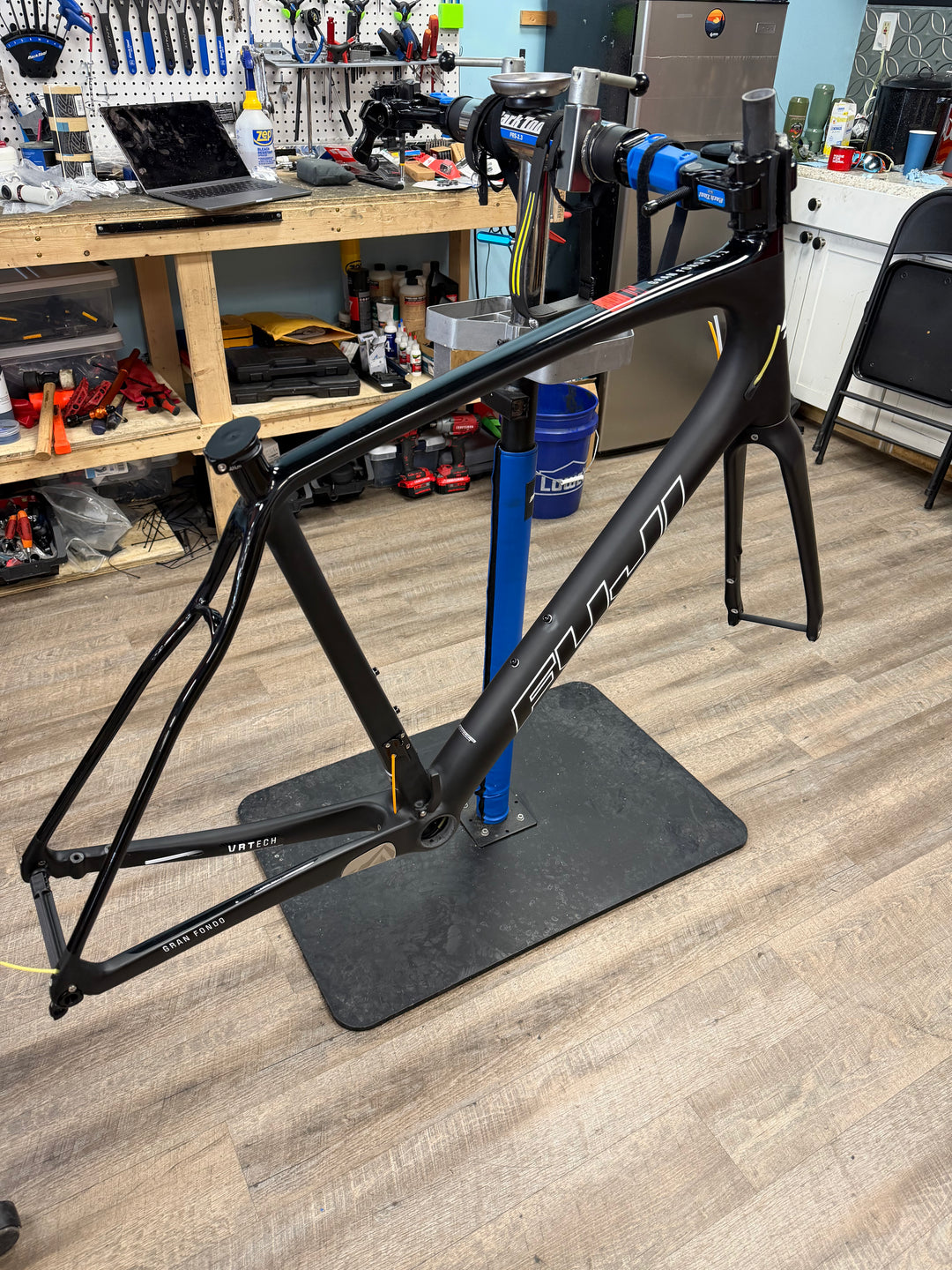

This is a new old-stock 2022 Fuji Gran Fondo 1.1 carbon endurance road frameset in Matte Carbon / Gloss White. It includes the carbon frame, carbon fork, integrated headset bearings, derailleur hanger, and seatpost clamp.
This is a flat mount disc, thru-axle road platform built around a PF30 bottom bracket shell. No thru-axles included. No bottom bracket included. Frame and fork only.
Key Functional Details
- Size: 58cm
- C10 high-modulus carbon frame with VRTech
- Color: Matte Carbon / Gloss White
- Rear spacing: 12x142mm thru-axle (axle not included)
- Front spacing: 12x100mm thru-axle (axle not included)
- Brake mount: Flat mount disc only
- Bottom bracket standard: PF30 (PressFit 30)
- Integrated headset: 1 1/8" upper – 1 1/2" lower (bearings included)
- Seatpost diameter required: 27.2mm
- Front derailleur mount: Braze-on
- Internal cable routing
- Fender mounts / hidden eyelets
- Platform Type: Road (Endurance Disc)
Compatibility & Technical Notes
- Requires 12x100mm front thru-axle wheel
- Requires 12x142mm rear thru-axle wheel
- Thru-axles NOT included — must match your hub’s thread pitch
- Flat mount disc brake compatible only
- Does NOT support rim brakes
- Bottom bracket shell: PF30
- Requires PF30-compatible crank or conversion bottom bracket
- Front derailleur: Braze-on only
- Seatpost required: 27.2mm
- Designed for 700c wheels
- Platform Type: Road
Service / Ownership Context
This is a custom build platform. PF30 requires proper press-fit installation. Thru-axles are not included and must match your hub thread pitch. Flat mount brake alignment must be set correctly during build. This is best assembled by experienced home builders or by a shop.
Fit & Use Signals
- Good Fit: You want a modern endurance road platform with hydraulic disc compatibility.
- Good Fit: You are building around 12x100 / 12x142 disc wheels.
- Good Fit: You understand PF30 bottom bracket systems.
- Not A Fit: You have rim brake wheels.
- Not A Fit: You require quick-release compatibility.
- Not A Fit: You are unsure how to select a PF30 bottom bracket.
Original Geometry & Stock Build Reference (58cm)
| Size | Seat Tube (mm) | Top Tube (mm) | Head Tube (mm) | Stack (mm) | Reach (mm) | Standover (mm) | Orig. Stem | Orig. Crank | Orig. Bar Width |
|---|---|---|---|---|---|---|---|---|---|
| 58cm | 540 | 580 | 215 | 625 | 389 | 829 | 120mm | 175mm | 440mm |
